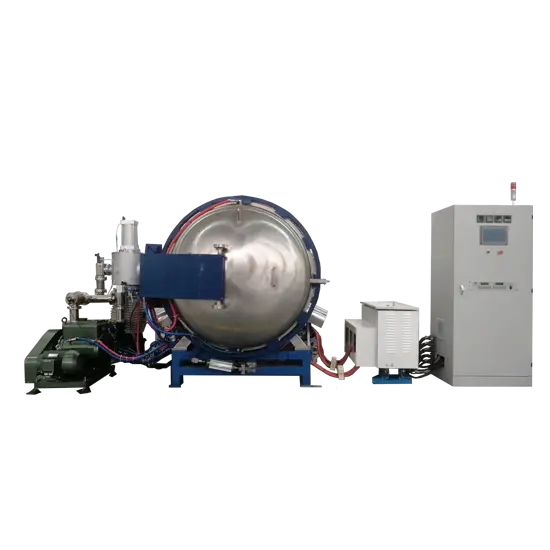

This equipment is a horizontal double-door high-temperature vacuum furnace, mainly used for the high-temperature reaction and collection of silicon monoxide, while also serving the general functions of a high-temperature atmosphere furnace. The system consists of the furnace body, door locking mechanism, heating system, gas charging and discharging system, vacuum system, electrical control system, water cooling system, transformer, and connecting cables.
Model | JYZG1-6DG |
Specifications | 1600℃-Φ400×400mm-30kg |
Heating Power | Approximately60kW |
Maximum Temperature | 1600℃ |
Heating Method | Graphite heating |
Temperature Control Accuracy | ±1°C (constant temperature) |
Heating Rate | 0~15℃ |
Collection Zone | 60L |
Temperature Control Method | Type B thermocouple |
Cold-State Ultimate Vacuum | ≤6.67*10-3Pa |
Horizontal Double-Door Structure: The design allows for more convenient material loading and unloading.
High-Purity Graphite Heating Element: The furnace uses high-purity graphite heating elements and a graphite felt insulation layer, providing stable structure and high heating efficiency.
Single or Double Chamber Heating: The furnace features both single-chamber and double-chamber heating options. In the double-chamber design, a transition chamber is placed between the two chambers, making it easier to adjust the temperature gradient between chambers, facilitating process exploration and silicon oxide deposition.
High-Vacuum Diffusion and Pumping Systems: Multiple vacuum systems are available, such as high-vacuum diffusion pumps, Roots pumps, and sliding valve pumps, ensuring high vacuum levels.
Gas Charging and Discharging System: The system works with the vacuum system to quickly replace the internal environment of the furnace chamber, creating a tailored vacuum/atmosphere environment that optimizes heating element performance and ensures better sintering of the samples.
User-Friendly Design: The furnace offers multiple operation modes, including manual and intelligent control, providing flexibility for different needs.
Versatile Usage: The furnace can be used as a standalone vacuum sintering furnace or as an atmosphere sintering furnace.
Multiple Visual and Safety Locking Systems: The equipment is equipped with multiple visual monitoring systems and safety interlocks to ensure the proper and safe operation of the furnace.
