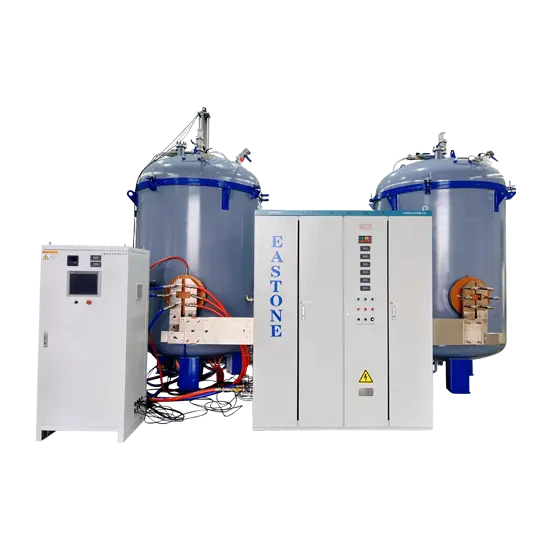

This high-temperature intelligent vertical graphitization furnace is primarily used for the graphitization treatment of graphene heat dissipation films and PI films.
Power Supply | AC 380V ±10%, three-phase, five-wire system, 50Hz/60Hz |
Total Power | Approximately 370kW |
Maximum Temperature | 3000℃ |
Heating Method | Induction Heating |
Temperature Control Accuracy | ±2℃(Constant Temperature) |
Temperature Uniformity | ≤15℃ |
Protective Atmosphere | N2 or Ar |
Temperature Control Method | Infrared Thermometer |
Loading Method | Top Loading |
Reaction Zone Dimensions | φ600*1200mm |
Precise Temperature Control with IGBT Power Supply
The system uses an IGBT power supply, which allows for more precise temperature control and significantly improved energy efficiency. The energy consumption per process cycle is reduced.
Advanced Temperature Control Technology
The furnace incorporates advanced low-to-medium temperature control technology, achieving accurate temperature regulation across the entire operating range.
Unique Insulation Structure
The furnace features an innovative insulation and mounting structure, which is more durable than traditional alumina materials, offering better insulation and fixed-effect performance.
