Product Performance
Maximum temperature： 3000℃
Size of reaction area ：Φ550×615mm
Pressure rise rate ：≤6.7Pa/h
Cold limit vacuum ：≤5Pa
Pressure ：100T

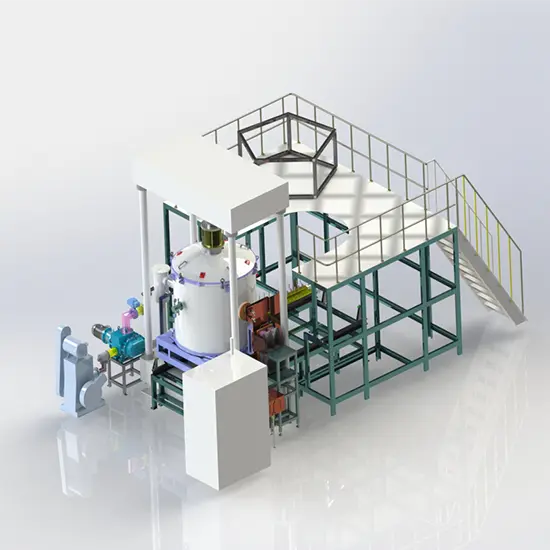

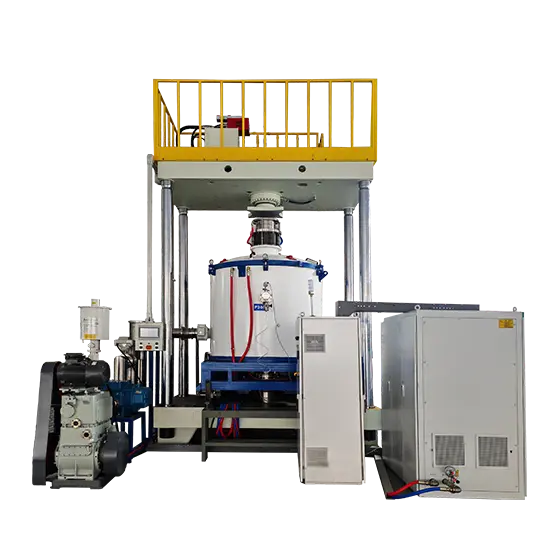

This equipment is a pressurised graphitization furnace, which is mainly used for graphitization of materials under specific temperature and pressure conditions. The equipment consists of furnace body, heating system, vacuum system, filtration system, automatic filling and deflating system, electrical control system, water cooling system, copper row group and so on.
Power supply | AC 380V±10%, three-phase five-wire system, 50Hz/60Hz |
Total heating power | About 240kW |
Maximum temperature | 3000℃ |
Heating method | Induction heating |
Temperature control precision | (Constant temperature)±1℃ |
Number of heating zones | Single zone |
Protective atmosphere | N2 or Ar |
Temperature control method | Infrared thermometer |
Pressure rise rate | ≤6.7Pa/h |
Cold limit vacuum | ≤5Pa |
Cooling water consumption | ≤50m3/h |
Reaction zone size | Φ550*615mm |
This equipment is equipped with a high-precision press. Pressurisation and graphitization processes can be carried out simultaneously, which can effectively reduce energy consumption and improve the yield rate.
Adopting the original intelligent pressure and temperature synergistic control brings more detailed process control capability, improves the production efficiency and enhances the product performance.
Through the core temperature field design, it increases the effective zone of the equipment and improves the temperature uniformity.
