Horizontal Type of Graphite Furnace

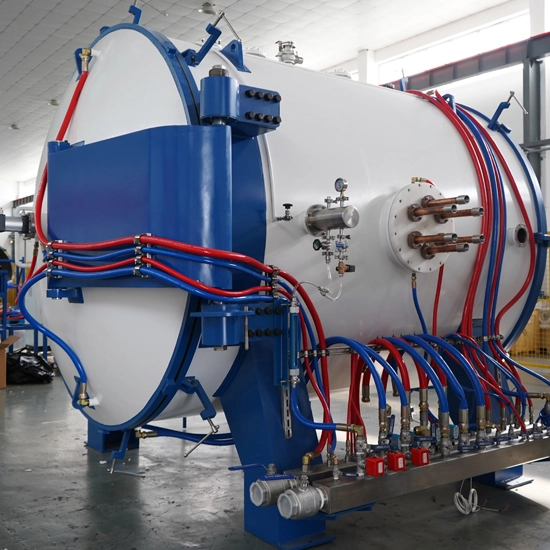

  • horizontal-type-of-graphite-furnace-price.jpg

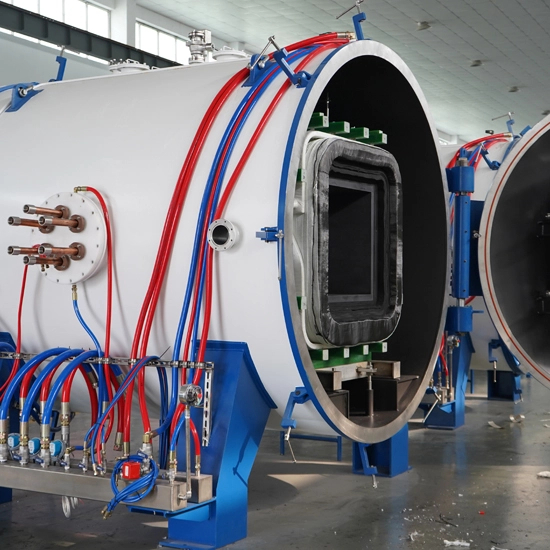

  • horizontal-type-of-graphite-furnace-use.jpg

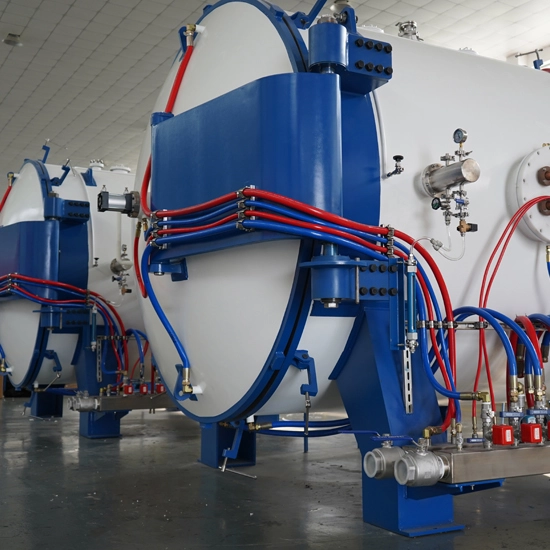

  • horizontal-type-of-graphite-furnace-cost.jpg
  • horizontal-type-of-graphite-furnace-china.jpg

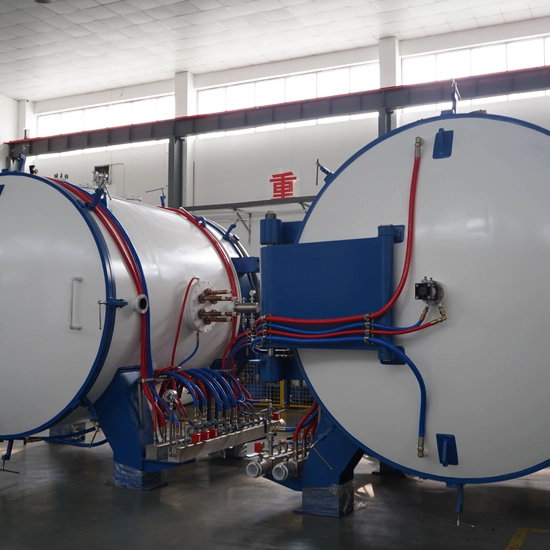

  • horizontal-type-of-graphite-furnace-factories.jpg

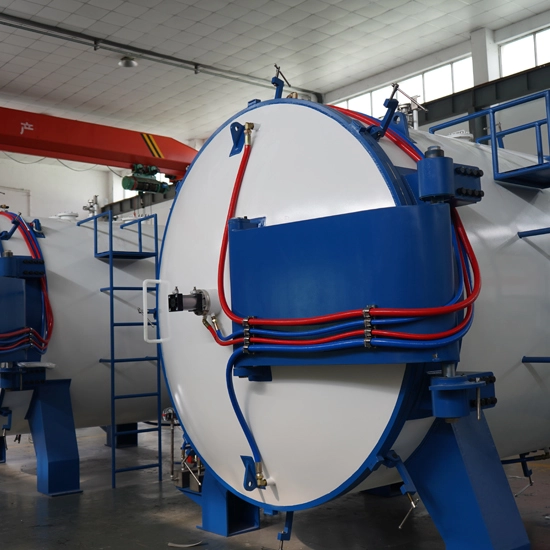

  • horizontal-type-of-graphite-furnace-factory.jpg
Description Parameters Features

Description of Horizontal Type of Graphite Furnace


This is a high-temperature intelligent horizontal graphitization furnace, primarily used for the graphitization treatment of graphene heat dissipation films and PI films.


Parameters of Horizontal Type of Graphite Furnace

Power Supply

AC 380V±10%, three-phase five-wire system, 50Hz/60Hz

Total Power

Approximately 520kW

Maximum Temperature

3000℃

Heating Method

Induction heating

Temperature Control Accuracy

±1°C (constant temperature)

Control Method

Eurotherm temperature control instruments with touchscreen operation

Protective Atmosphere

N2 or Ar

Temperature Measurement Method

Infrared thermometer

Material Discharge Method

Dual-side opening door for material entry and exit

Reaction Zone Dimensions

Φ650*650*2000mm


Features of Horizontal Type of Graphite Furnace


  • Double-Layer Water Jacket Furnace Structure: The furnace body adopts a double-layer water jacket design, welded into a simplified structure with front and rear flanges. The flange surface is equipped with a dovetail-type sealing groove, sealed using O-type silicone rubber seals. The furnace body features cooling water inlets and outlets, vacuum evacuation ports, induction coil installation ports, infrared thermometer holes, and automatic gas charging and discharging interfaces.

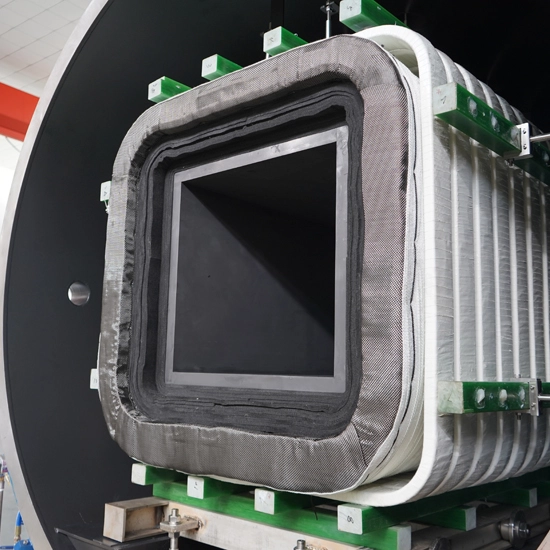

  • Induction Heating with High-Purity Graphite Crucible: The furnace uses a medium-frequency power supply with an induction coil to heat the high-purity graphite crucible inside. The induction coil is arranged in a square spiral pattern, with three coil sections distributed and fixed within the furnace body. The graphite crucible is made from high-purity graphite, assembled to form a structure that ensures high purity, no volatilization, and maintains chamber cleanliness. The graphite soft felt used for insulation provides excellent high-temperature resistance, impact resistance, and can withstand temperatures up to 3000°C.

  • Automatic Gas Charging and Discharging System: The furnace is equipped with an automatic gas charging and discharging system, consisting of a flow meter, solenoid valve, manual valve, pressure sensor, and connectors. The system uses a pressure sensor and solenoid valve to form a closed-loop control system, allowing precise control of the furnace's atmosphere pressure.
