Model: JYZF1-5EH JYZF1-5DG
Product Performance
Effective workspace: Φ400×400mm
highest temperature: 2100°C
ultimate vacuum: 6.67 x 10 -4 Pa

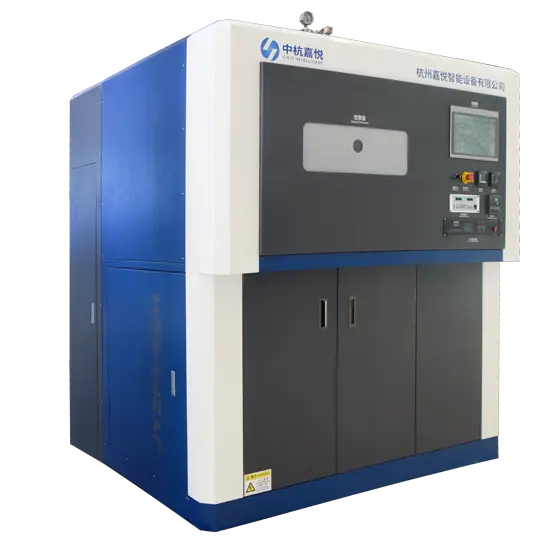

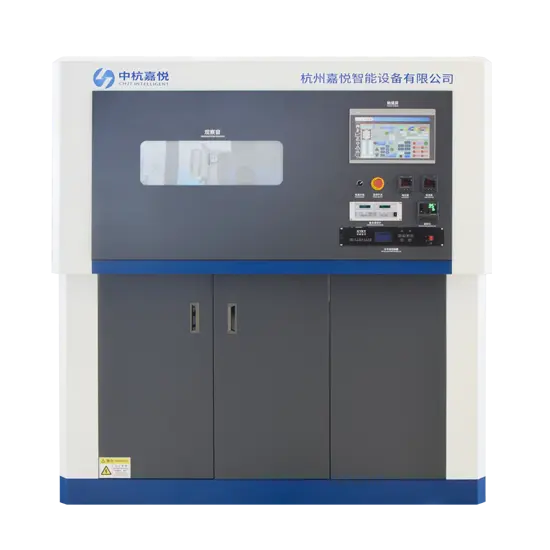

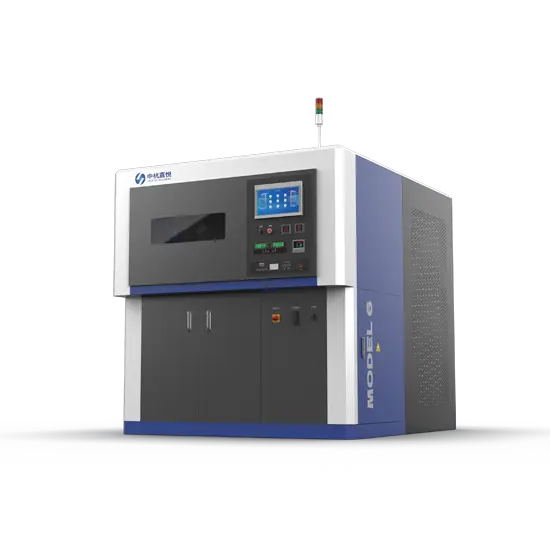

The Vacuum Tungsten Furnace is a vacuum furnace that uses tungsten mesh to heat things. The vacuum tungsten furnace is used in labs and industry to reach very high temperatures and create a very strong vacuum. It is used for many things, including making ceramics, melting and sintering metals and alloys, and brightening and degassing metals. The vacuum tungsten furnace can also determine the properties of metals and ceramics under high-temperature vacuum conditions. The tungsten mesh heating body inside the vacuum tungsten furnace is a six-piece cage design. The exterior is insulated with a multi-layer screen made of tungsten and molybdenum. This design ensures temperature uniformity, reduces distortion, and extends the service life of the equipment.
Equipment Model | JYZF1-5EH | JYZF1-5DG | |
Equipment specifications | 2100℃-Φ400×400 | 2100℃-Φ200×200 | 2100℃-Φ200×200 |
Total power consumption | 120KW | 80KW | 80KW |
Effective workspace | Φ400×400mm | Φ200×200mm | |
heating element | Tungsten Mesh Heater | ||
insulation screen | All-metal tungsten/molybdenum construction | ||
Temperature uniformity | ≤±5°C | ||
speed of warming | 0～15℃ /min | ||
Temperature control accuracy | ±1°C | ||
temperature control | Type C tungsten rhenium thermocouple | ||
highest temperature | 2100°C | ||
ultimate vacuum | 6.67 x 10 -4 Pa | ||
pressure rise | 6.7 Pa/h | ||
process control | PLC Temperature Programmable Controller | ||
operating method | Touch screen automatic control / manual operation on site | ||
heating zone | Zone 1 | ||
The vacuum tungsten furnace comes in different shapes and structures, with various discharge methods such as side-opening doors, bottom lifts, and top-open covers. A well-designed structure makes material loading and unloading easier and more efficient.
There are different types of heating, using a tungsten mesh cage heater as the main heater. You can also turn the tungsten plate heater on or off in different zones to get more accurate temperatures.
The multi-layer labyrinth-type all-metal tungsten and molybdenum heat insulation screen structure design ensures better heat preservation performance, even at high temperatures. It can also effectively insulate the heat and save energy consumption.
The high vacuum molecular pump system configuration easily achieves a 5X10^-4Pa level vacuum system.
The vacuum system can quickly change the internal environment of the cavity to a tailored vacuum/atmosphere environment, which is better for the heat generator to work and complete the sample sintering.
User-friendly design allows for manual or automatic operation. One vacuum tungsten furnace can be used for different processes, such as vacuum or atmosphere sintering.
The system monitors the equipment's performance in real-time to ensure safety.
