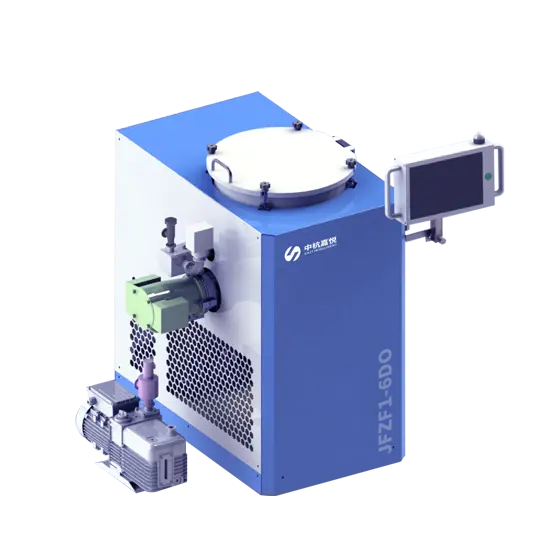

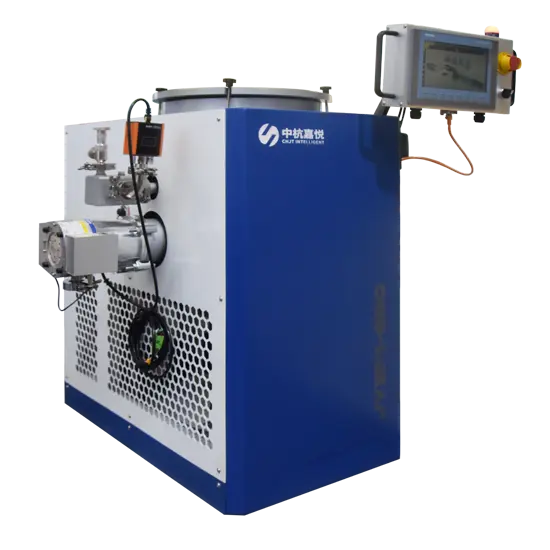

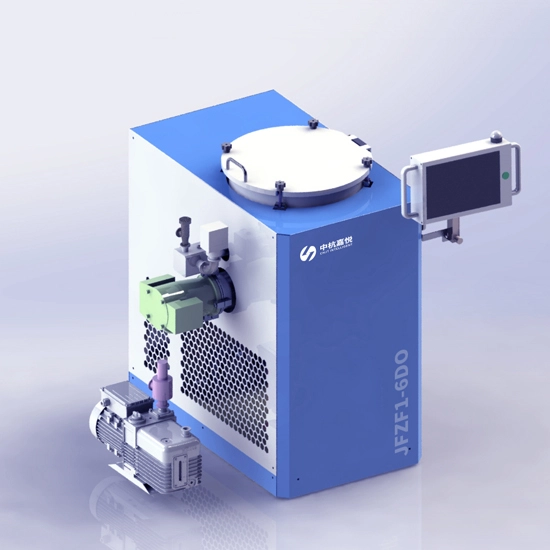

This is an experimental graphitization furnace, primarily used for laboratory process validation of materials such as graphene films, carbon papers, and PI films.
Feeding Method | Top-opening door |
Power Supply | 220V |
Total Power | 6KW |
Temperature Control Accuracy | ±1℃(constant temperature) |
Effective Working Area | Φ90*50mm |
Heating Element | Isostatic graphite |
Maximum Temperature | 2400℃ |
Temperature Uniformity | ±1℃ |
Control Temperature Accuracy | ±1℃ |
Efficient Heat Dissipation: The internal electrodes of the furnace use an aluminum heat sink structure, combined with air cooling to ensure effective heat dissipation and stable operation.
Compact Design: The furnace has a compact volume, making it easy to operate and efficient in space usage.
High-Temperature Capability: The furnace can reach temperatures up to 2400°C, meeting the various demands of carbon material process development and research.
Energy-Efficient Insulation: The furnace features a single-wall structure chamber with an external sheet metal cover. The air layer formed between the chamber and the cover provides enhanced insulation, achieving better thermal efficiency and significantly reducing energy consumption.
