Product Performance
Temperature: 1200℃/1400℃/1700℃
Heating up speed: Recommended ≤10℃/min, the fastest heating speed 30℃/min
Cooling speed: Above 700℃≤10℃/min

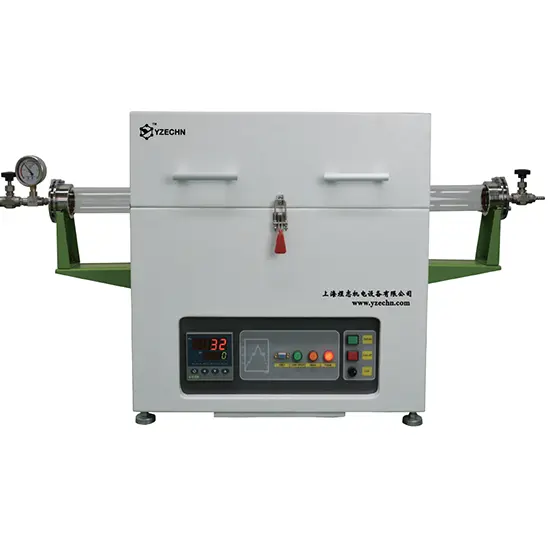

Tube furnace with resistance wire as the heating element, double shell structure, an intelligent program temperature control system, silicon control, and high-precision temperature control. The double shell with the air-cooling system effectively reduces the surface temperature of the furnace shell. This tube furnace, combined with our standard vacuum gas mixing system, can be evacuated through the atmosphere. The tube furnace cover can be opened to quickly cool down the structure which gives a reasonable, beautiful appearance.
Furnace Structure | Double shell structure |
Machine power supply | AC220V, 50/60Hz; rated power 3.5kw |
Temperature | 1200℃/1400℃/1700℃ |
Heating up speed | Recommended ≤10℃/min, the fastest heating speed 30℃/min |
Cooling speed | Above 700℃≤10℃/min |
Furnace tube | Material: high purity quartz tube/corundum tube; Size: Φ60/80/100*1000mm; Pipe insulation design: 2 pipe plugs are placed at both ends of the heating zone to prevent heat transfer to the flange. |
Sealing flange | Stainless steel extruded sealing flange |
Temperature control system | Temperature control system adopts artificial intelligence regulation technology, with PID regulation, self-tuning function, and can be programmed for 30 sections of temperature rise and fall procedures; temperature control accuracy ± 1 ℃. |
Heating elements | High quality alloy wire |
Temperature measuring elements | N type thermocouple |
Dimensions and weights | 1160*520*610mm (L*W*H); Net weight 75kg |
Standard Configurations | 1 main unit, 1 set of sealing flange, 4 O-rings, 1 quartz tube, 2 tube plugs, 1 pair of high-temperature gloves, 1 crucible hook, 1 copy of instruction manual, certificate of conformity and warranty card. |
Optional vacuum | Low vacuum YZK-10 Vacuum degree ≤10Pa; Medium vacuum YZK-01 Vacuum degree ≤1Pa; High vacuum YZK-0005 Vacuum degree≤0.005Pa |
Optional gas mixing | Float flow meters (systems) Mass flow meters (systems) |
The tube furnace cover can be opened to observe the heated material in real-time, and can cool down quickly to meet the experimental needs of the material's sudden cold and heat;
The tube furnace chamber is made of imported alumina polycrystalline fiber material, with good heat preservation, durability, high tensile strength, no stray balls, high purity, and energy-saving effect significantly better than domestic fiber materials;
The heating element of industrial furnace adopts high-resistance high-quality alloy wire, durable, with a maximum temperature of up to 1200 ℃;
A vacuum and gas circuit fast interface is reserved, which can be used with our vacuum and gas mixing system;
Reserved 485 conversion interface, through our special software, and computer interconnection, can achieve a single or multiple electric furnace remote control, real-time tracking, history records, output reports, and other functions;
The upper cover opens automatically powers off, over-temperature alarm and power off, leakage protection, and safe and reliable operation.
