Model: JYZF1-1FJ
Product Performance
Effective working area: 1800×550×1000mm
Maximum temperature: 1300℃
Ultimate cold vacuum: 6.67*10-4Pa
Pressure rise rate: ≤0.67Pa/h

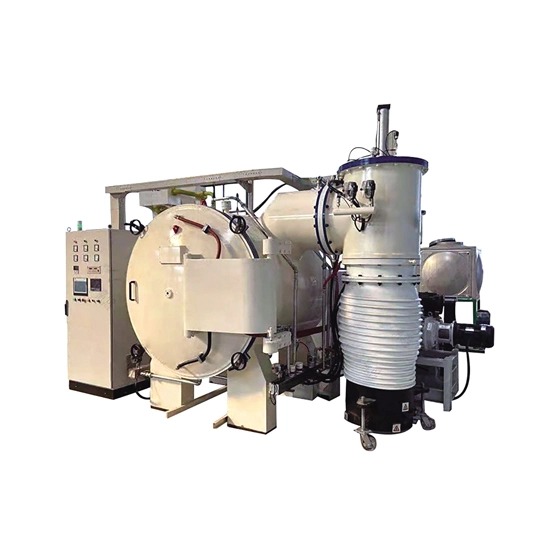

The brazing furnace is mainly used for vacuum brazing of stainless steel, copper, titanium alloy, high-temperature alloy, hard alloy, etc. There are various vacuum brazing furnaces for sale that you can choose from to meet your specific project needs. Typical vacuum brazing furnace products include all kinds of stainless steel plate heat exchangers, EGR (Exhaust Gas Recirculation System), diamond tools, optical instruments, and so on.
Equipment Model | JYZF1-1FJ | ||
Equipment specifications | 1300℃-Φ300×300×400 | 1300℃-Φ600×600×900 | 1300℃-Φ800×800×1200 |
mains | AC 380V±10%, three-phase five-wire system, 50Hz±1Hz | ||
total power | Approx. 60KW | Approx. 150KW | Approx. 210KW |
heating element | Tungsten/Molybdenum | ||
highest temperature | 1300°C | ||
insulation screen | Tungsten/molybdenum, all-metal construction | ||
Temperature uniformity | ±1°C | ||
temperature control | Tungsten rhenium thermocouple | ||
process control | PLC Temperature Programmable Controller | ||
ultimate vacuum | 6.67*10-4Pa | ||
pressure rise | ≤0.67Pa/h | ||
Structural design: the brazing furnace door and its body are welded with standard head and flange, and the whole is a double-layer 304 stainless steel plate structure, which ensures durability and stability.
Cooling system: the double-layer furnace brazing machine features a spiral water trap ring that effectively cools the shell and seals the brazing oven, ensuring proper sealing and extending the service life of the sealing ring.
Monitoring system: Each branch of the water cooling system is equipped with valves and flow sensors to accurately monitor water pressure, temperature, and flow of the vacuum brazing furnace.
Safety Alarm: When the equipment is abnormal, the sound and light alarm system of the furnace brazing machine will issue an alarm in time and display it in the control interface, and at the same time start the safety interlock to ensure the safety of operation.
