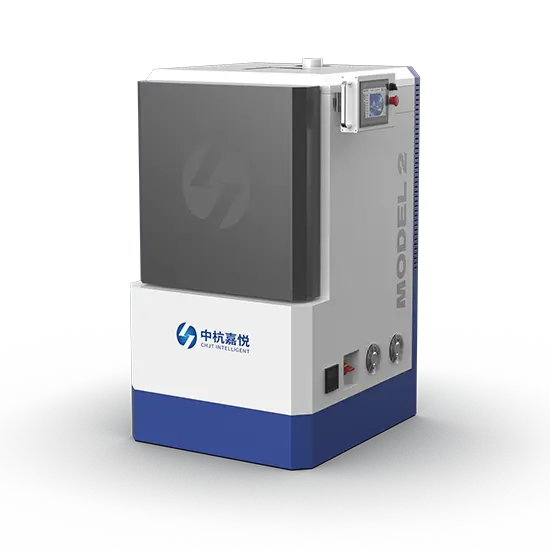

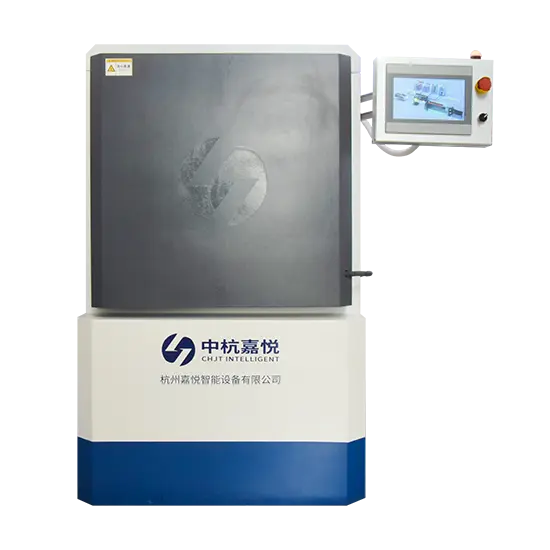

Model: JYRH1-1RD
Product Performance
Equipment specification 1400℃-400*400*400mm
Total Power 12KW
Effective working area 400*400*400mm
This debinding furnace uses Cornell resistance wire as the heating element and features an intelligent temperature control system, silicon control, and high-precision temperature control. The debinding and sintering furnace chamber uses foam ceramics. The double-layer debinding furnace shell is equipped with an air-cooling system, to effectively ensure the surface temperature of the shell.
Equipment Model | JYRH1-1RD |
Equipment specification | 1400℃-400*400*400mm |
Total Power | 12KW |
Effective working area | 400*400*400mm |
Maximum temperature | 1400℃ |
Temperature control precision | ±1℃ |
Temperature uniformity | ±5℃ |
Heating element | Cornell Resistance Wire |
Furnace chamber | Foam ceramic hearth |
Heating method | Five-side heating |
The debinding furnace chamber is made of foam ceramics with small shrinkage, low thermal conductivity, good heat preservation, durability, and energy-saving.
The heating element adopts Cornell resistance wire, the highest heating temperature can reach 1400℃.
The debinding and sintering furnace adopts five-sided heating and better temperature uniformity of the equipment.
Ultra-temperature and broken couple protection alarm and power off, leakage protection, safe and reliable operation.
