Model: JYZI1-6DG
Product Performance
Effective working area : Φ900×1000mm
Maximum temperature : Reaction area1600℃
Temperature control accuracy : (constant temperature)±1℃
Pressure rise rate : ≤6.7Pa/h
Cold limit vacuum : ≤6.67*10-1Pa

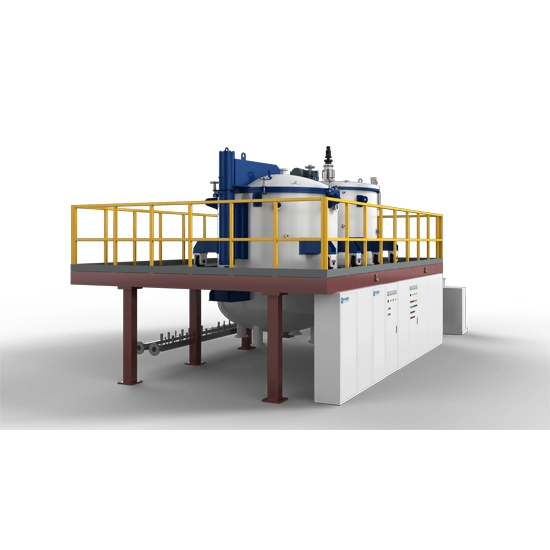

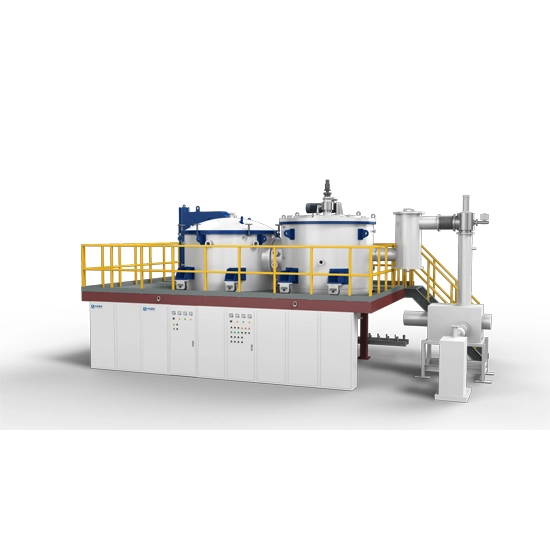

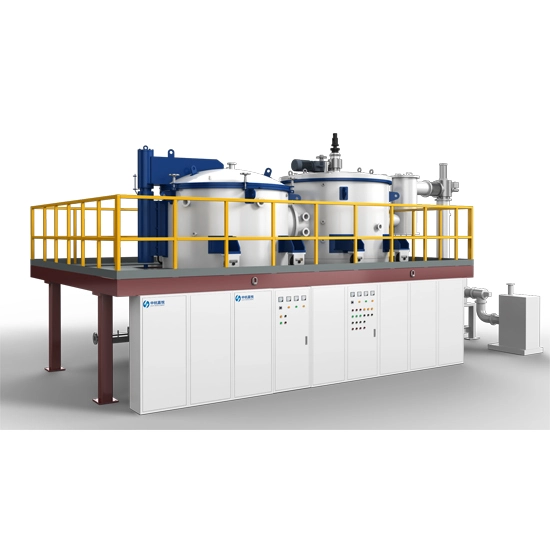

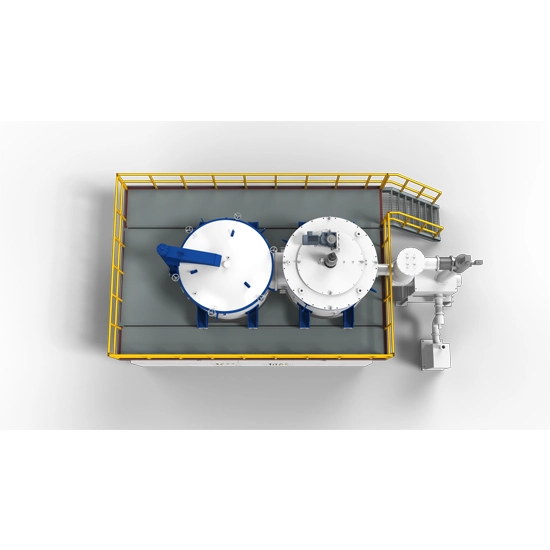

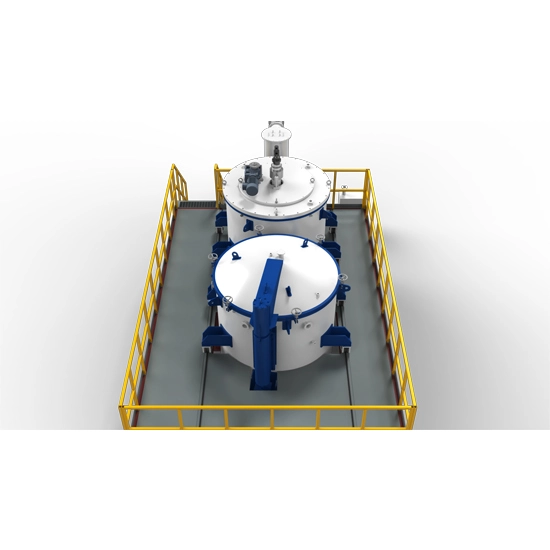

This equipment is a 500KG silica distillation and sintering equipment, which is mainly used for high temperature reaction preparation and collection of silica, and also has the function of general high temperature atmosphere furnace. The equipment consists of furnace body, furnace door and its locking device, heating system, charging and discharging system, vacuum system, electrical control system, water cooling system, transformer and connecting cables.
Equipment Model | JYZI1-6DG |
Equipment specification | 1600℃-Φ900×1000mm-500 |
Heating power | Approx380kW |
Maximum temperature | Reaction zone：1600℃ |
Heating method | Graphite heating |
Temperature control accuracy | (constant temperature)±1℃ |
Temperature rise rate | 0~15℃/min |
Pressure rise rate | ≤6.7Pa/h |
Temperature control method Type | C tungsten rhenium thermocouple |
Cold limit vacuum | ≤6.67*10-1Pa |
Insulation material | Graphite moulding fibre hard felt + graphite soft felt |
Three-temperature layout: distillation reaction area, transition area and collection area with independent temperature control, stable quality
Efficient temperature field: shorten the time of temperature lifting and lowering, improve the working efficiency;
Fine structure: special collection design, high temperature resistant materials, improve the quality of silica oxide;
High collection efficiency: up to 93% or more, improve material utilisation, reduce energy consumption to 13~16kWh/kg, increase economic value.
